技术参数 Specifications
1、额定压力(Rafed pressure):200bar
2、额定流量(Rated flow):60L/min
3、开启率(Cracking Rate) ：>90%
4、合率(Closing Rate)：>87.5%
5、油液清洁度(Cleanling code):20/18/15(NAS9)
6、工作温度(Temperature range):-20~+100℃
7、每转压力变化(Pressure change per turn):170bar
8、安装扭矩(lstallation Torque):40~45Nm
9、锁紧扭矩(Nut Tightening Torque):23~28Nm
|
工作原理 DESCRIPTION |
技术参数 Specifications |
|
当P口压力达到设定压力后，先导阀芯首先被打开，
由此产生的压差使得主阀芯打开，P到丅实现溢流。 该类型的阀反向可以承受一定的背压，启闭率较高， 适用于高压力、大流量的液压系统。 When the pressure at "P"reaches the valvesetting,the pilot spool starts to open , Next the main spool opening because of the pressure drop between inside and outside of main spool, Realizeoverflow from P fo T. This type of valve can withstand a certain amount of back pressure,has high opening and closing rate Suitable for the hydraulic system of high pressure and large flow
|
1、额定压力(Rafed pressure):200bar
2、额定流量(Rated flow):60L/min 3、开启率(Cracking Rate) >90% 4、闭合率(Closing Rate)>87.5% 5、油液清洁度(Cleanling code):20/18/15(NAS9) 6、工作温度(Temperature range):-20~+100℃ 7、每转压力变化(Pressure change per turn):170ban 8、安装扭矩(lsfallation Torque):40~45Nm 9、锁紧扭矩(Nut Tightening Torque):23~28Nm
|
|

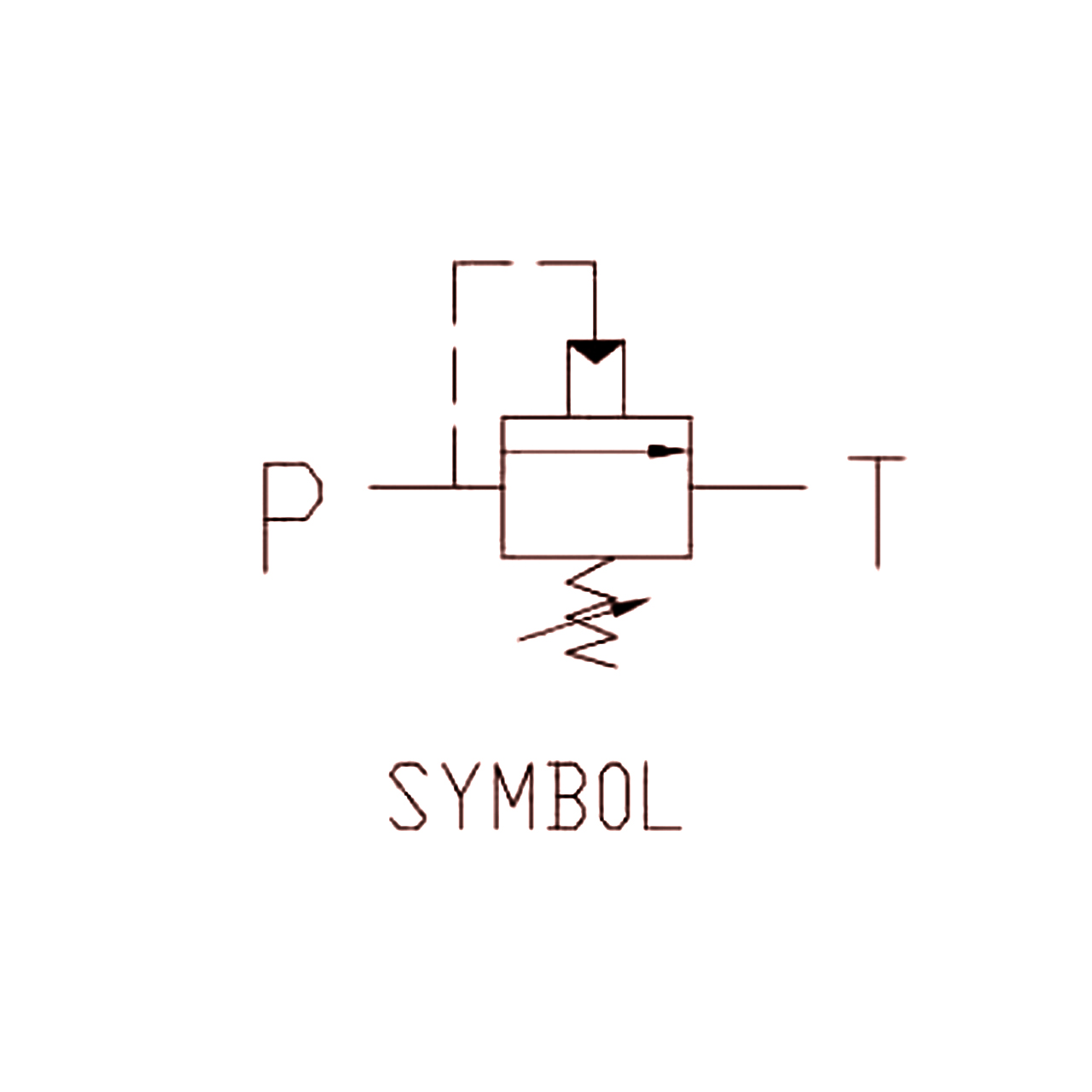

机能符号
|
 |
|

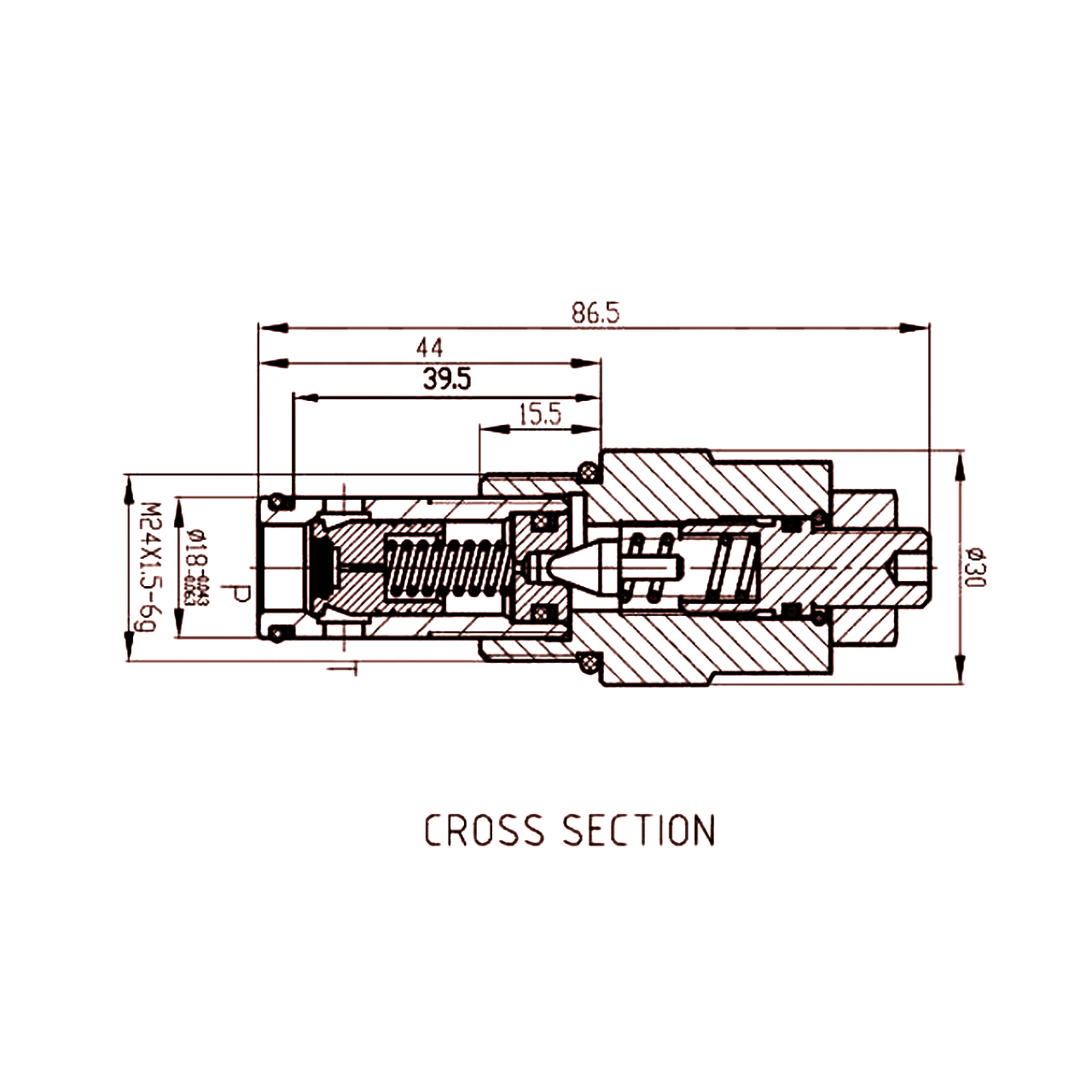

剖视图
|
 |
|

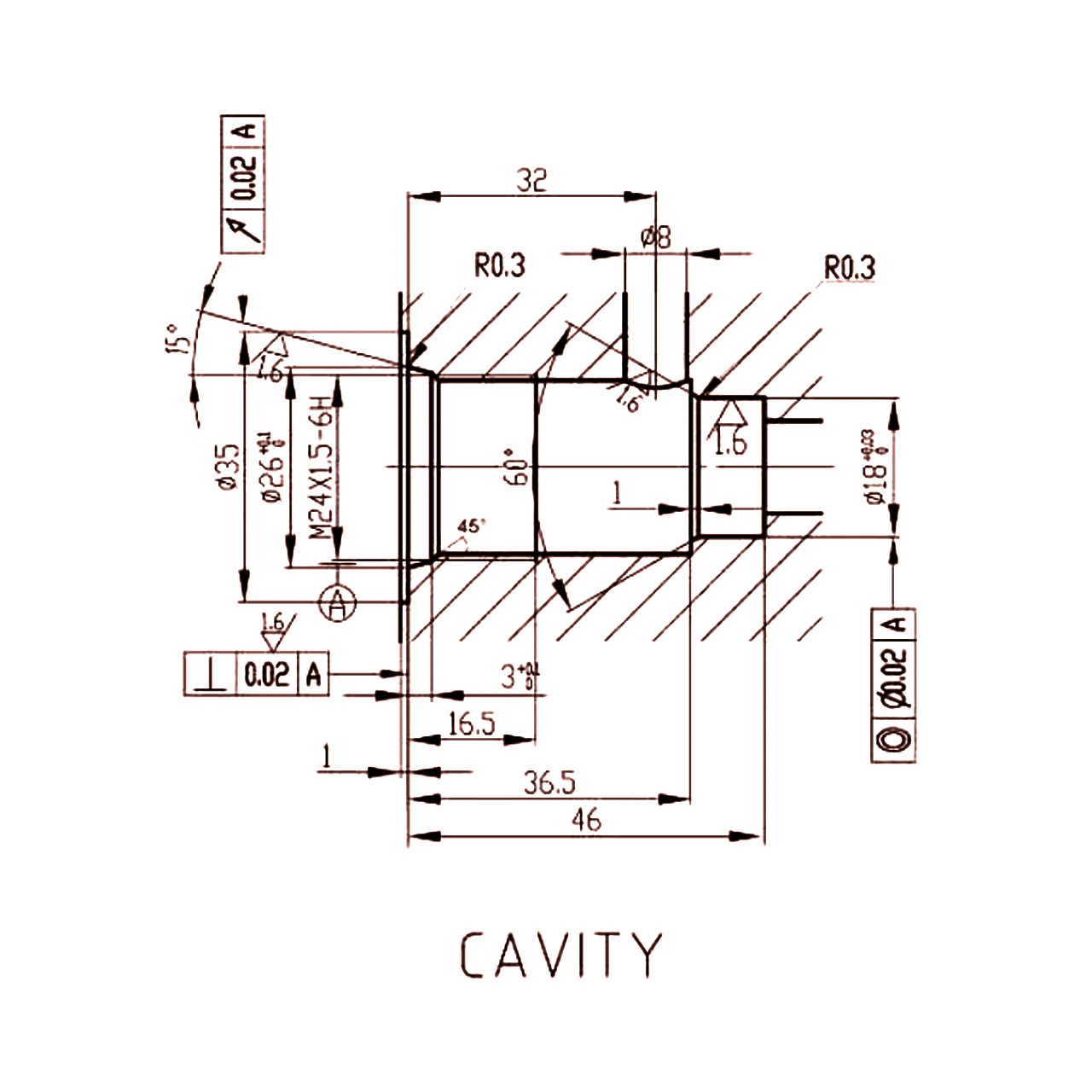

插孔
|
 |
|

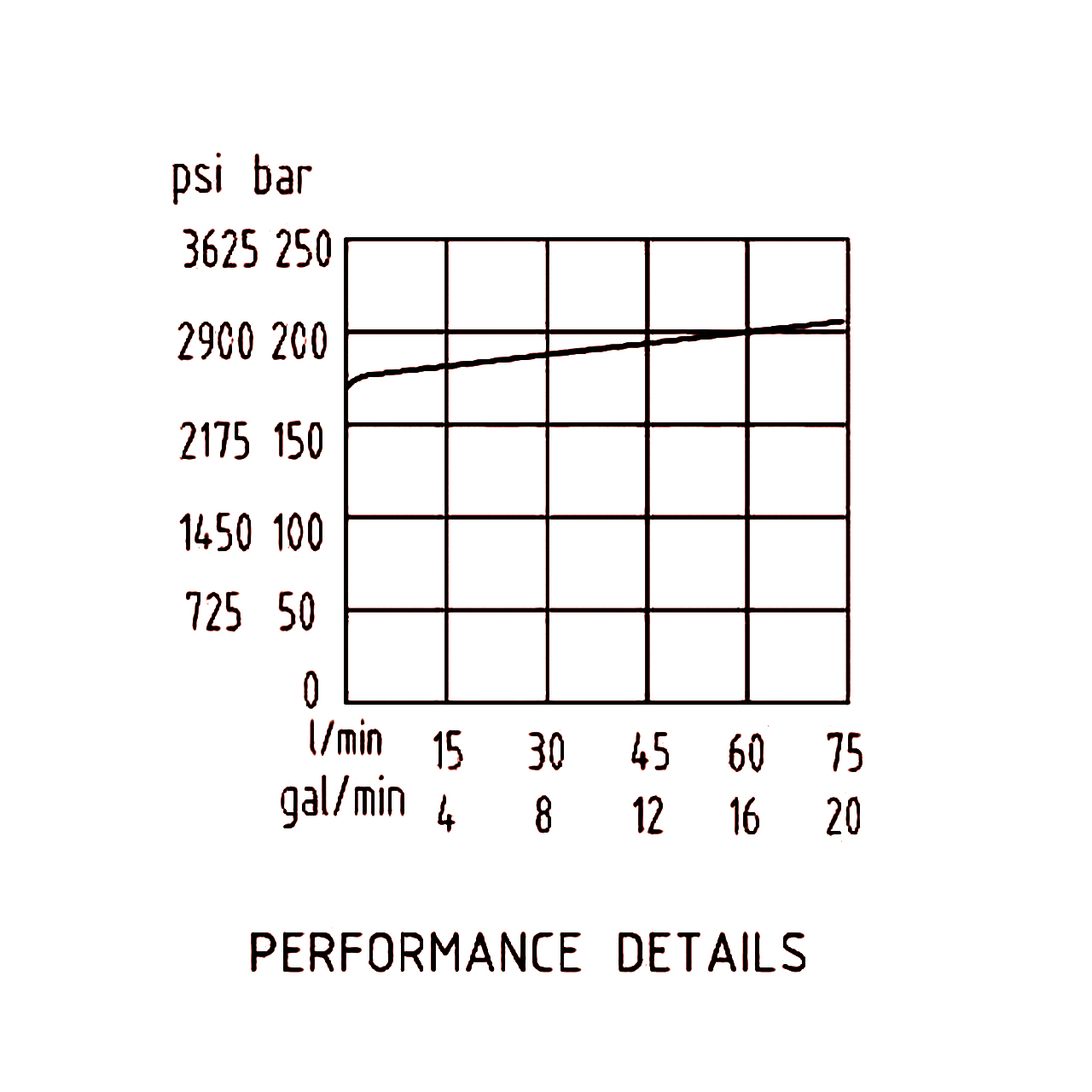

压力流量曲线
|
 |
