技术参数 Specifications
1.额定压力(Rated pressure):315bar
2.额定流量(Rated flow):80L/min
3.开启压力(Cracking pressure):0.3bar
4.泄漏量(Internal leakage):0.07drops/min
5.油液清洁度(Cleaning code):20/18/15(NAS9)
6.工作温度(Temperature range):-20~+100℃
7.安装扭矩(Installation torque):43~48Nm
|
工作原理 DESCRIPTION |
技术参数 Specifications |
|
当①口压力超过开启压力，油液由①流向②,反方向②到①关闭 Pressure at 1over the cracking pressure allows free flow from 1 to 2 Flow in the opposite direction from 2 to 1 is blocked
|
1.额定压力(Rated pressure):315bar
2.额定流量(Rated flow):80L/min
3.开启压力(Cracking pressure):0.3bar
4.泄漏量(Internal leakage):0.07drops/min
5.油液清洁度(Cleaning code):20/18/15(NAS9)
6.工作温度(Temperature range):-20~+100℃
7.安装扭矩(Installation torque):43~48Nm
|
 |
 |

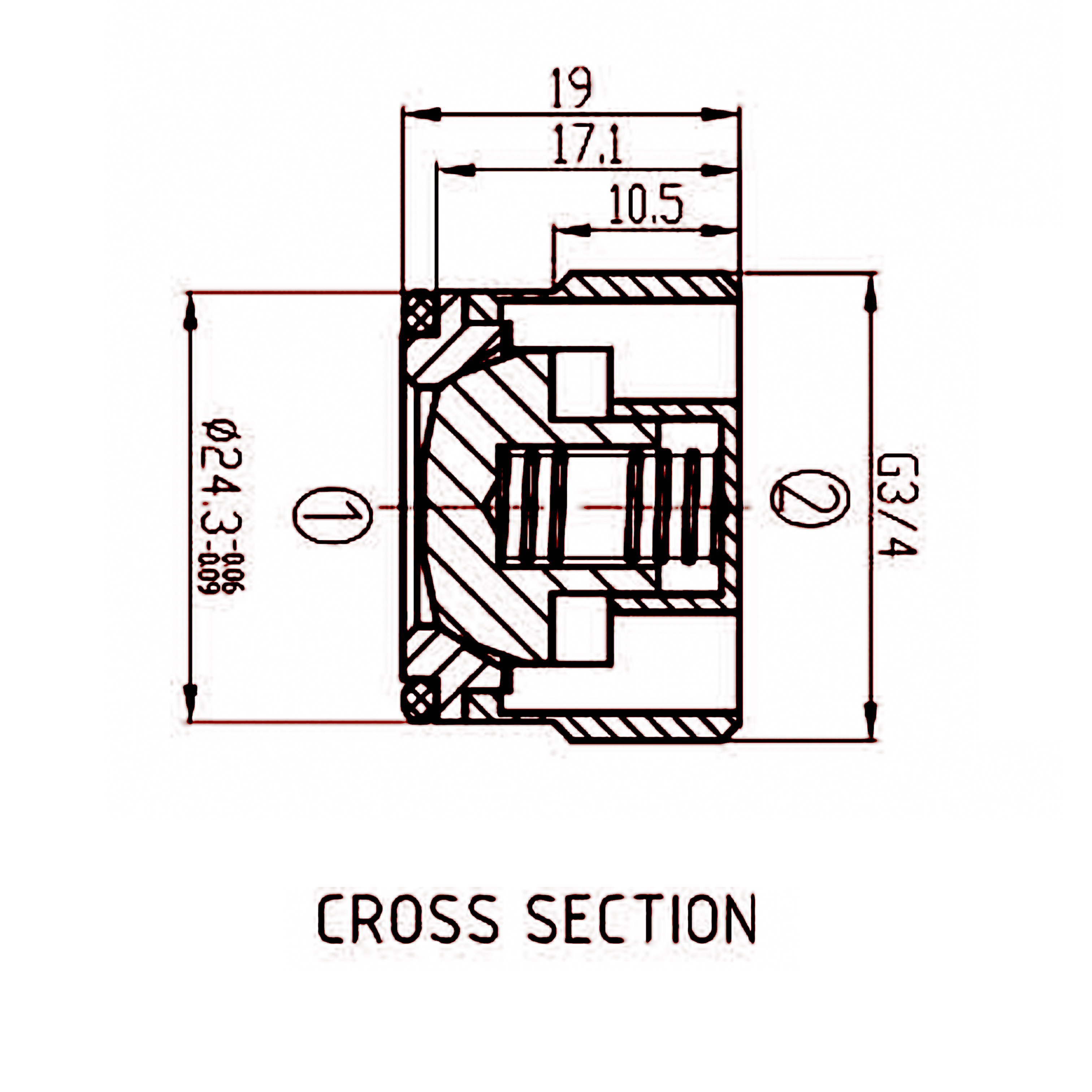

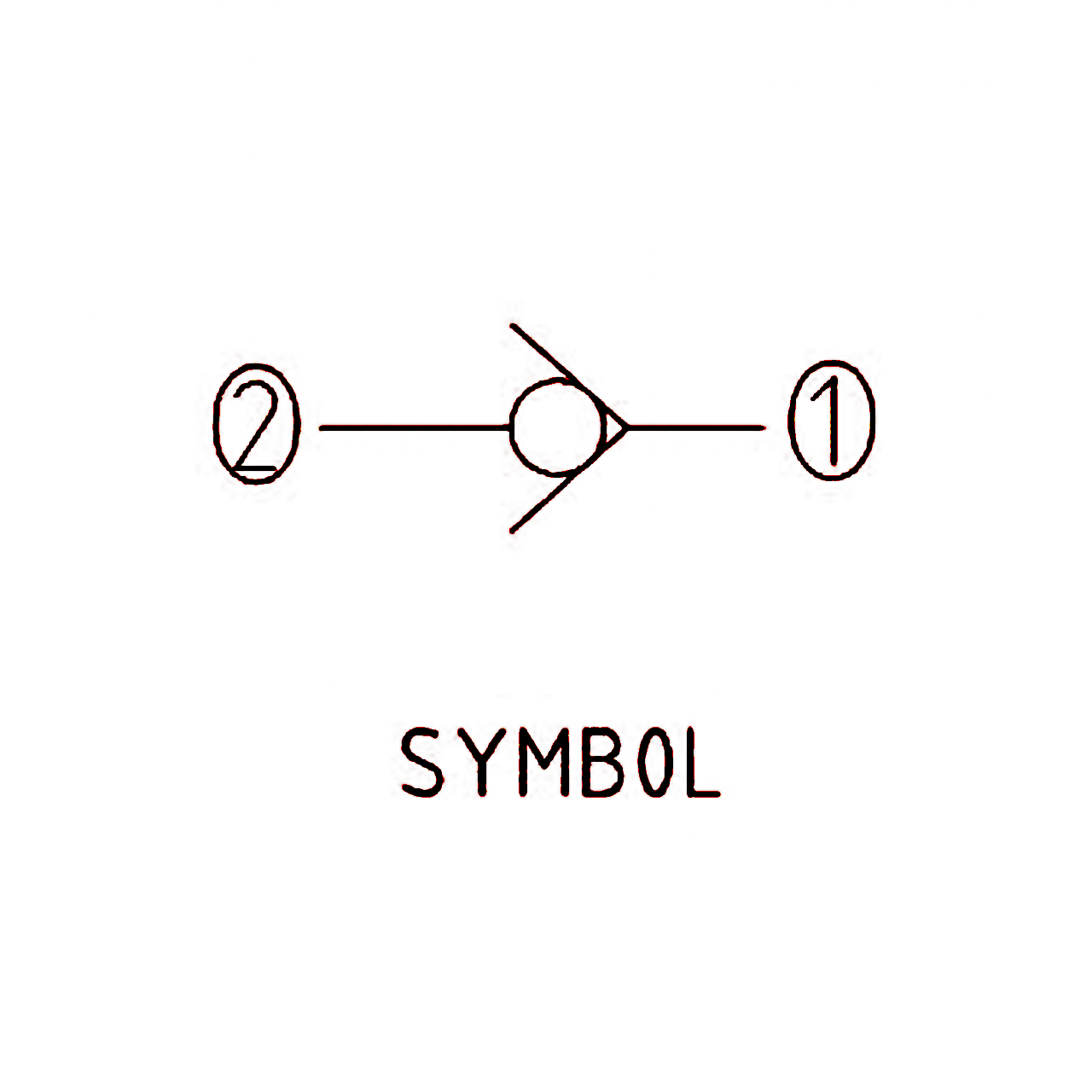

| 机能符号 SYMBOL | 剖视图 CROSS SECTION |
 |
 |

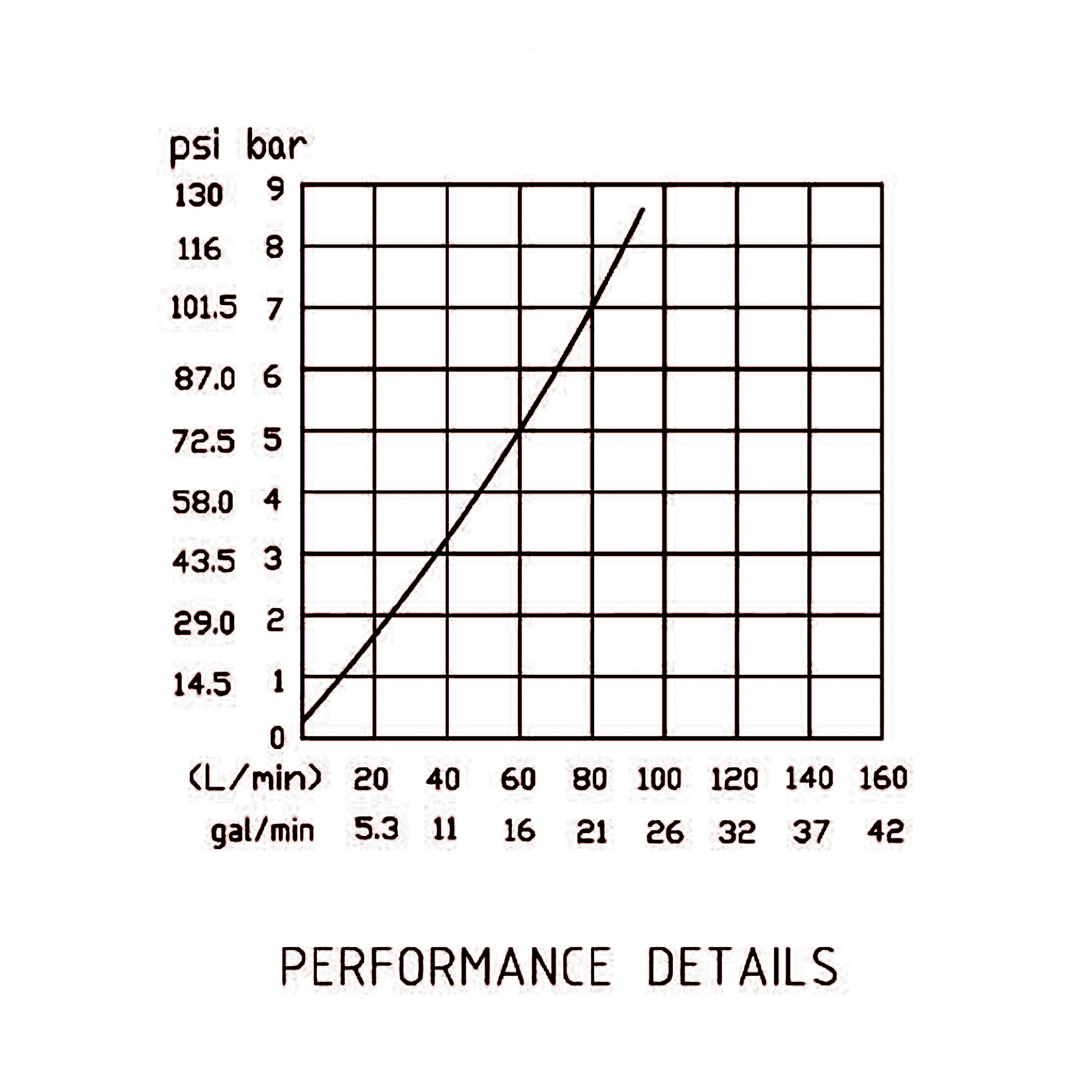

| 插孔 CAVITY | 压力流量曲线 PERFOPMANCE DETAILS |
